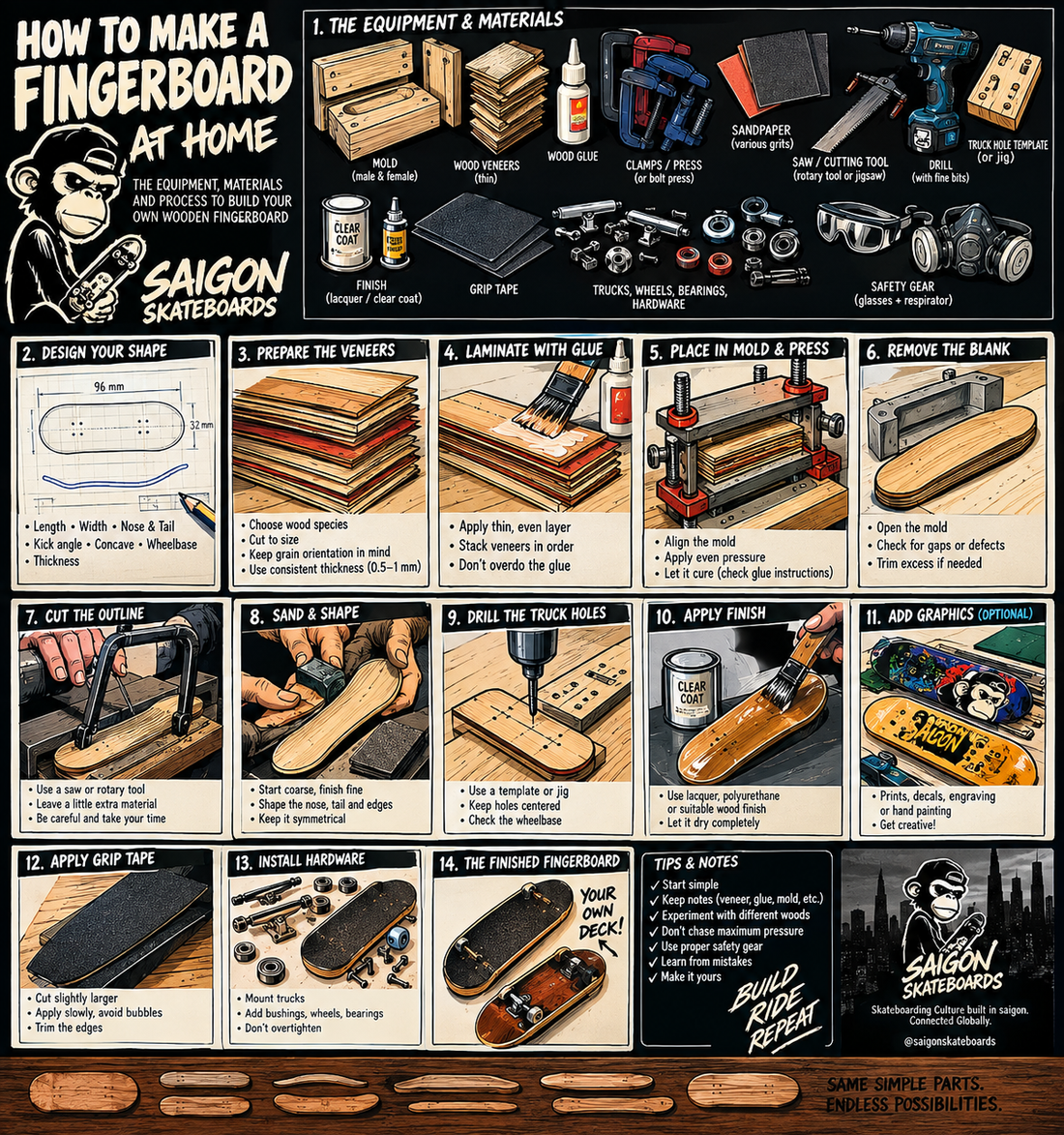

How to Make a Fingerboard at Home: The Complete DIY Deck Guide

The Equipment, Materials and Basic Techniques Behind a DIY Wooden Fingerboard

There is something fundamentally satisfying about making your own fingerboard.

Buying a finished deck gives you an immediate result. Making one yourself gives you an understanding of what actually goes into the little piece of wood beneath your fingers.

A handmade fingerboard is, at its simplest, a miniature laminated skateboard. Several extremely thin sheets of wood veneer are glued together, placed into a mold, pressed into shape and then finished into a usable deck.

The concept is simple.

Getting a genuinely good result is considerably harder.

Small differences in veneer, glue, pressure, mold geometry, alignment and finishing can produce surprisingly large differences in the finished board. That is exactly what makes DIY fingerboarding interesting: you can experiment, make mistakes, adjust your process and eventually develop something that feels uniquely yours.

This guide covers the basic equipment and materials required to get started.

1. What You Actually Need

You don't need an industrial workshop to make fingerboards.

A basic home setup can be assembled around a few essential components:

• Fingerboard mold
• Thin wood veneers
• Wood glue
• Press or clamping system
• Sandpaper
• Saw or cutting tool
• Drill
• Fingerboard truck-hole template or jig
• Finishing materials
• Safety equipment

Some equipment can be improvised. Other equipment is worth buying or making properly.

The mold and pressing system are particularly important because they determine the basic shape of the board.

2. The Fingerboard Mold

The mold is arguably the most important piece of equipment in the entire process.

It determines the concave, kicks and overall profile of the finished deck.

A fingerboard mold normally consists of two shaped surfaces:

Male mold

The raised section that pushes into the veneers.

Female mold

The corresponding recessed section that receives the veneers and allows the deck to form around the desired shape.

When the laminated veneers are placed between the two halves and compressed, they take the shape of the mold.

Mold materials

DIY molds can be made from several materials, including:

• Hardwood
• Plywood
• Aluminium
• Steel
• CNC-machined materials
• 3D-printed materials for experimentation

For someone starting out, a well-made wooden mold can be perfectly adequate.

Metal molds have advantages when producing large numbers of decks because they are durable and dimensionally stable, but they are not necessary for learning the process.

3. Shape Matters More Than You Might Expect

A fingerboard isn't simply a flat piece of wood with two ends bent upward.

The relationship between the following characteristics determines how the board feels:

• Deck length
• Deck width
• Nose length
• Tail length
• Kick angle
• Concave depth
• Wheelbase
• Overall thickness

A board with steep kicks and deep concave will feel dramatically different from a board with mellow kicks and shallow concave.

This is why copying dimensions from another board doesn't necessarily reproduce its feel.

Two decks can have similar measurements but completely different riding characteristics.

For a DIY project, it is often better to start with a relatively conventional shape and experiment from there.

4. Choosing Your Veneers

The next major component is the wood.

Fingerboards are generally constructed from very thin veneers, laminated together with their grain directions arranged appropriately.

Common woods used for fingerboard construction include:

• Maple
• Birch
• Beech
• Walnut
• Mahogany
• Cherry
• Ash
• Exotic hardwood veneers
• Decorative figured woods

Maple is particularly popular because it provides a useful combination of strength, flexibility and appearance.

But there is no single "correct" wood.

Different species can change the appearance, stiffness and character of a deck.

5. Veneer Thickness

The veneers need to be extremely thin compared with normal woodworking boards.

The exact thickness depends on the material and construction method.

A typical DIY builder may work with veneer in the approximate range of 0.5–1 mm per layer, although thinner and thicker materials are also possible.

The important thing is consistency.

If one veneer is substantially thicker than the others, the finished deck may not behave as expected.

The total number of layers also changes the character of the board.

More layers generally produce a thicker laminated structure, while fewer layers can produce a thinner construction.

There isn't necessarily a universally correct number of plies.

That's part of the experimentation.

6. Grain Direction

Wood has a grain direction, and the direction of each veneer matters.

When laminating multiple sheets together, the grain can be arranged to give the finished deck greater structural stability.

A basic laminated construction often alternates grain orientation between layers.

This is one of the principles that separates a laminated fingerboard from simply gluing several pieces of wood together.

The veneer should also be clean, flat and free from significant defects.

7. The Glue

Glue is another critical part of the process.

A good wood adhesive needs to provide a strong bond while allowing the veneers to be compressed and shaped.

Common DIY options include:

• PVA wood glue
• Aliphatic resin wood glue
• Other woodworking adhesives specifically intended for wood lamination

Different adhesives behave differently.

Some remain relatively flexible after curing. Others produce a harder glue line.

The important thing is not simply finding the strongest glue you can buy.

You want an adhesive that is appropriate for thin wood lamination and produces a consistent bond.

Don't drown the veneers in glue.

Too much adhesive can create unnecessary mess, increase curing problems and make it difficult to achieve consistent results.

Too little glue can create weak or incomplete bonds.

The goal is a thin, even coating across the bonding surface.

8. The Press

Once the veneers have been glued, they need to be compressed inside the mold.

This is where the press comes in.

There are numerous ways to accomplish this.

Simple clamp system

A basic DIY setup can use:

• C-clamps
• Bar clamps
• Bolts
• Threaded rod
• Washers
• Plates

The principle is simple:

Mold + veneers + pressure = shaped laminated deck

The important thing is that pressure is distributed evenly.

A single clamp in the centre of the mold isn't particularly useful if the ends are barely being compressed.

9. A Bolted Press

One of the more practical DIY approaches is a bolt-based press.

The mold halves are fitted with several threaded fasteners.

The veneers are placed between the mold sections, the bolts are tightened progressively and the entire assembly remains compressed while the adhesive cures.

This approach has several advantages:

• Cheap
• Repeatable
• Easy to construct
• Easy to modify
• Suitable for small batches

It also allows you to experiment with different mold designs without needing expensive machinery.

10. Preparing the Veneers

Before applying glue, prepare everything.

Don't start spreading adhesive and then discover that you haven't cut enough veneers.

Prepare:

1. Your veneers
2. Your mold
3. Your press
4. Alignment references
5. Clamps or bolts
6. Cleaning materials
7. A timer
8. Protective equipment

Dry-assemble everything first.

Put the veneers into the mold without glue.

Close the mold.

Check that everything fits.

This simple step can prevent a surprisingly large number of problems.

11. Laminating the Deck

Once everything is prepared, the basic process is straightforward.

Lay out the veneers in the desired order.

Apply an even layer of adhesive between the appropriate surfaces.

Stack the veneers carefully.

Place the stack into the mold.

Align everything.

Close the mold.

Apply pressure gradually and evenly.

Then leave the assembly undisturbed while the adhesive cures according to the manufacturer's instructions.

The exact curing time depends on the adhesive being used.

Do not rush this stage.

A deck that looks solid on the outside can still have weak internal bonds.

12. Don't Chase Maximum Pressure

More pressure isn't automatically better.

The purpose of the press is to hold the veneers firmly against one another and against the mold while the adhesive cures.

Excessive pressure can potentially squeeze too much adhesive from the joint or damage delicate veneers.

Consistency is more important than brute force.

If every deck is pressed in roughly the same way, you'll have a much easier time understanding why one batch behaves differently from another.

13. Removing the Blank

Once the adhesive has fully cured, the mold can be opened.

You should now have something that resembles a miniature skateboard blank.

Don't immediately start sanding aggressively.

Inspect it first.

Look for:

• Separation between layers
• Gaps
• Cracks
• Uneven edges
• Veneer movement
• Warping
• Inconsistent kicks
• Surface damage

If the laminate has failed internally, no amount of sanding will fix it.

14. Cutting the Deck Shape

The laminated blank can now be cut to the desired outline.

Possible tools include:

• Coping saw
• Scroll saw
• Bandsaw
• Rotary tool
• Small jigsaw
• Fine-tooth hand saw

For a home workshop, a small saw or rotary tool can be enough.

The important thing is control.

Don't try to remove all the material in one aggressive cut.

Leave a small amount of excess material around the outline and refine the shape gradually.

This makes it much easier to achieve a clean and symmetrical deck.

15. Sanding

Sanding is where the rough blank starts becoming a finished fingerboard.

Begin with a relatively coarse abrasive to establish the shape.

Then progressively move toward finer sandpaper.

Pay particular attention to:

• Nose
• Tail
• Sidewalls
• Corners
• Wheel wells
• Bottom edge

The objective is a smooth, consistent outline.

Fingerboards are tiny, which makes symmetry especially important.

A difference of a millimetre can be much more obvious on a miniature deck than it would be on a full-size skateboard.

16. Drilling the Truck Holes

The next stage is drilling the mounting holes.

This is another area where precision matters.

A simple drill press is ideal, but a carefully controlled handheld drill can work.

A drilling template or jig is extremely useful because it ensures that the hole pattern is repeatable.

The holes need to be correctly positioned relative to:

• Deck centreline
• Nose
• Tail
• Wheelbase
• Truck mounting pattern

Before drilling an expensive or attractive piece of wood, practice on scrap material.

17. Finishing the Deck

At this point you have a functional wooden fingerboard deck.

But it still needs finishing.

Possible finishes include:

• Clear lacquer
• Polyurethane
• Acrylic clear coat
• Oil-based finishes appropriate for the wood
• Other woodworking finishes

The finish protects the wood and can dramatically change its appearance.

Figured woods, burl woods and contrasting veneers can look particularly impressive once finished.

One of the interesting things about natural wood is that you don't always know exactly what you're going to get until the final finish is applied.

18. Graphics

There are numerous ways to add graphics.

DIY builders can experiment with:

• Printed graphics
• Waterslide decals
• Heat-transfer methods
• Direct printing
• Laser engraving
• Hand-painted artwork
• Natural wood combinations

You don't necessarily need a complicated graphic.

A well-designed natural wood deck can be just as visually striking.

In fact, one of the attractions of handmade fingerboards is that the construction itself can become the artwork.

19. What About Grip Tape?

Once the deck is finished, grip tape can be applied to the top.

Cut the grip tape slightly larger than the deck.

Apply it carefully from one side to the other, pressing it down progressively to avoid bubbles.

Then trim around the perimeter.

A clean grip installation makes a surprisingly large difference to the finished appearance.

20. Installing the Hardware

The final stage is assembling the board.

You'll generally need:

• Fingerboard trucks
• Wheels
• Bearings
• Screws
• Nuts
• Washers
• Bushings
• Grip tape

Install the trucks carefully and avoid overtightening.

The finished board should move freely and the wheels should rotate without unnecessary resistance.

At this stage you can also experiment with different truck and wheel combinations.

This is where the deck's geometry begins interacting with the rest of the setup.

21. Troubleshooting Common Problems

The veneers separate

Possible causes include insufficient adhesive, uneven glue coverage, contamination or inadequate curing.

The deck comes out warped

Check the mold alignment, veneer condition and pressure distribution.

One kick is different from the other

The mold, veneer positioning or pressure may not have been symmetrical.

The deck feels too stiff

Construction thickness, wood species, glue and overall geometry can all influence stiffness.

The board feels too flexible

The opposite factors may be involved.

The edges look rough

Spend more time refining the cut and progressively sanding the perimeter.

Truck holes aren't aligned

Use a proper drilling template or jig rather than attempting to position every hole manually.

22. The Most Important Tool Isn't a Tool

The most valuable piece of equipment in a DIY fingerboard workshop is arguably a notebook.

Record what you do.

Write down:

• Veneer species
• Veneer thickness
• Number of plies
• Glue used
• Mold used
• Pressing method
• Cure time
• Finishing method
• Final dimensions
• What worked
• What didn't

If a particular combination produces an excellent deck, you want to be able to reproduce it.

If something goes wrong, your notes can help identify why.

This is how experimentation becomes development.

23. Start Simple

One of the biggest mistakes a new builder can make is trying to create an incredibly complicated board immediately.

Start with a conventional shape.

Use readily available wood.

Use a straightforward mold.

Make a few decks.

Learn what changes when you alter one variable.

Then experiment.

Change the concave.

Change the kicks.

Try another wood.

Change the veneer combination.

Try another finishing technique.

Over time, you will begin developing your own understanding of how each variable affects the final board.

24. The Basic DIY Workflow

The entire process can be reduced to a simple sequence:

1. Design the shape
2. Prepare the mold
3. Select and prepare veneers
4. Apply adhesive
5. Stack the veneers
6. Place them in the mold
7. Apply even pressure
8. Allow the adhesive to cure
9. Remove the blank
10. Cut the outline
11. Sand and shape
12. Drill truck holes
13. Apply finish
14. Add graphics
15. Apply grip
16. Install trucks and wheels
17. Ride it

25. A Basic Home Workshop Shopping List

For someone starting from scratch, the equipment list doesn't have to be enormous.

Essential

Mold

• Fingerboard deck mold

Wood

• Thin veneers
• Several species for experimentation

Adhesive

• Quality wood glue

Press

• Clamps or bolt-based pressing system

Cutting

• Small saw or rotary tool

Shaping

• Sandpaper
• Sanding blocks

Drilling

• Small drill
• Fine drill bits
• Hole-positioning jig or template

Finishing

• Clear coat or appropriate wood finish

Assembly

• Fingerboard trucks
• Wheels
• Bearings
• Hardware
• Grip tape

Highly useful

• Drill press
• Digital calipers
• Small files
• Bench vice
• Cutting mat
• Dust extraction
• Good lighting
• Respirator suitable for the materials being used
• Safety glasses

26. Safety

A fingerboard may be tiny, but making one involves real workshop hazards.

Wood dust should not be casually inhaled.

Wear appropriate eye protection when cutting or drilling, and use suitable respiratory protection and ventilation when generating fine dust or working with finishes.

Keep fingers away from cutting tools.

Use clamps rather than your hands to hold small pieces during cutting or drilling.

And pay attention to the manufacturer's safety instructions for any adhesive, lacquer, solvent or finishing product.

A good DIY workshop should produce good fingerboards without producing unnecessary injuries.

27. Why Make One Yourself?

The obvious question is why go through all this trouble when finished fingerboards are readily available.

Because the process teaches you something.

Making a board forces you to understand what a fingerboard actually is.

You begin noticing concave.

You notice kick angles.

You notice wheelbase.

You notice deck thickness.

You start thinking about wood species and veneer orientation.

You begin understanding why two boards that look almost identical can feel completely different.

And eventually, you stop simply copying existing designs.

You start developing your own.

Final Thoughts

Making a fingerboard at home is surprisingly achievable.

The basic technology is simple: thin wood, adhesive, a shaped mold and controlled pressure.

The difficult part is consistency.

The difference between a crude homemade deck and a genuinely refined handmade fingerboard comes from dozens of small details: accurate molds, clean veneers, controlled glue application, proper pressing, symmetrical shaping, precise drilling and careful finishing.

That's also what makes the process addictive.

Your first board probably won't be perfect.

Your second will teach you something.

Your fifth might be considerably better.

Eventually, you may find yourself designing shapes rather than simply making boards.

And that's the real appeal of DIY fingerboarding.

You're not just making a miniature skateboard.

You're learning how to build one.
