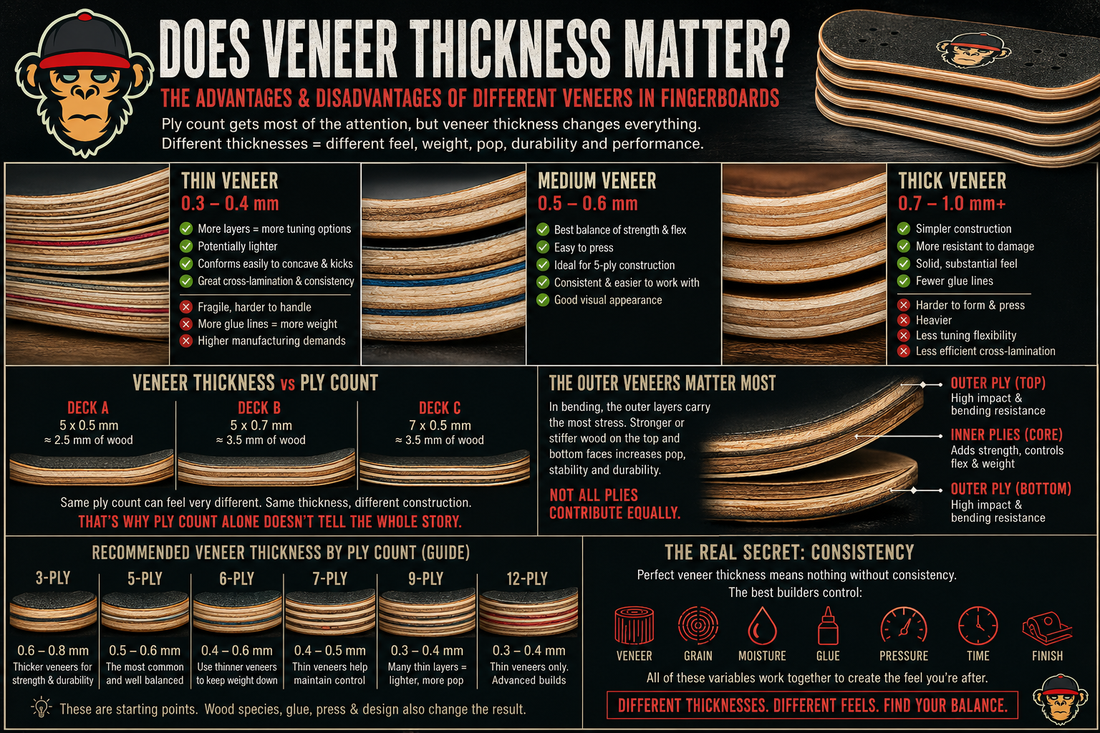

Does Veneer Thickness Matter? The Advantages & Disadvantages of Different Veneers in Fingerboards

When people talk about fingerboard construction, the conversation usually centres around ply count: 3-ply, 5-ply, 7-ply, 9-ply and so on.

But there is another variable that can be just as important, the thickness of each individual veneer.

A fingerboard can be made with relatively thin veneers laminated into many layers, or thicker veneers laminated into fewer layers. Both approaches can produce excellent boards, but they don't necessarily produce the same feel, weight, stiffness, appearance or pressing characteristics.

For builders, choosing veneer thickness is therefore another tool for tuning the character of a deck.

What Is Veneer Thickness?

Veneer is the individual sheet of wood used to construct a fingerboard.

Typical fingerboard veneers are commonly around 0.4–0.7 mm, although thinner and thicker material is available. A number of builders use approximately 0.5–0.6 mm maple veneer, while specialist constructions can go outside this range.

The finished thickness of a deck is determined by several things:

Number of veneers × veneer thickness + glue lines + compression

So, for example, five relatively thin veneers will not necessarily produce the same construction as five thicker veneers.

This is why simply saying that a deck is "5-ply" doesn't tell you everything about how it will feel.

Research into laminated wood construction also shows that veneer thickness influences bending, bonding, compressibility and mechanical performance. In plywood applications, thinner veneers can provide advantages in bonding and bending strength, although the exact result depends heavily on the wood, grain, adhesive and construction.

Thin Veneer, Approximately 0.3–0.4 mm

Very thin veneer allows a builder to create a laminated deck using more individual layers without necessarily making the board excessively thick.

Advantages

More opportunities to tune the deck

Using very thin veneers allows the builder to experiment with different combinations of woods and colours. You can create complex ply patterns without dramatically increasing the finished thickness.

Potentially lighter construction

If the overall deck thickness is controlled, thinner veneers can allow a builder to optimise the amount of material being used.

Excellent lamination

Thin sheets can conform extremely well to concave and kick profiles during pressing. This can be particularly useful when pressing complicated shapes.

More layers can create a very consistent laminate

A greater number of thin layers means more glue interfaces and more cross-lamination. Properly constructed plywood benefits from distributing stresses between multiple layers.

Disadvantages

More difficult to work with

Very thin veneer is fragile. It can crack, split or break during cutting, handling and pressing much more easily than thicker material.

More preparation

The thinner the veneer, the more important storage, humidity and handling become. A tiny defect that would be insignificant in a 0.6 mm sheet can become a major problem in a 0.3 mm sheet.

More glue lines

More veneers mean more adhesive interfaces. This isn't necessarily bad, but excessive glue can add weight and alter the feel of the finished deck.

Higher manufacturing demands

Thin veneer rewards precision. Poorly prepared sheets, inconsistent thickness or uneven glue application can produce inconsistent decks.

Medium Veneer, Approximately 0.5–0.6 mm

For many fingerboard builders, this is the sweet spot.

Around 0.5–0.6 mm provides a good compromise between flexibility, strength, handling and ease of manufacturing. Community discussions among fingerboard builders frequently reference approximately 0.5–0.6 mm maple as a practical starting point.

Advantages

Good balance of strength and flexibility

Medium-thickness veneer provides enough material to produce a robust deck without making it unnecessarily heavy.

Easy to press

It is generally easier to handle than extremely thin veneer while still conforming well to concave and kick profiles.

Excellent for 5-ply construction

Five layers of approximately 0.5–0.6 mm veneer provide a familiar balance between thickness, stiffness and weight.

Good manufacturing consistency

For a small manufacturer, medium veneer is often easier to source, cut, store and handle consistently.

Excellent visual appearance

There is enough thickness to make coloured, natural and exotic veneers visually prominent without requiring huge numbers of layers.

Disadvantages

The main disadvantage is that it may not be ideal for every construction.

A rider wanting an extremely light, flexible deck may prefer thinner veneer, while someone looking for a particularly stiff and substantial deck may prefer thicker material.

Thick Veneer, Approximately 0.7–1.0 mm+

Thicker veneer moves the construction in the opposite direction.

Instead of achieving deck thickness through lots of thin layers, you can reach the same overall thickness with fewer, thicker pieces.

Advantages

Simpler construction

Fewer layers can mean fewer individual pieces to prepare and glue.

Greater material thickness per layer

A thicker veneer can be more resistant to handling damage before pressing.

Solid feel

Some riders prefer the sensation of a deck constructed from thicker wood. It can feel substantial and planted rather than extremely light and flexible.

Potentially fewer glue lines

A construction using fewer thick veneers requires fewer adhesive interfaces.

Disadvantages

More difficult to form

Thicker wood doesn't conform to tight curves as easily as thin veneer. This becomes increasingly important when dealing with pronounced concave and kicks.

More material per ply

A thick veneer can add significant weight if the total deck thickness isn't carefully controlled.

Less flexibility in construction

With fewer layers, the builder has fewer opportunities to tune the deck by changing individual ply materials or orientations.

Potentially less efficient cross-lamination

One of the great strengths of laminated wood is that stresses can be distributed across multiple layers. A construction using fewer, thicker veneers has fewer individual layers to distribute those stresses.

Does Thin Veneer Mean More Pop?

Not necessarily.

This is one of the biggest misconceptions in fingerboard construction.

Pop is influenced by far more than veneer thickness.

It depends on:

• Wood species
• Wood density
• Grain direction
• Number of plies
• Total deck thickness
• Concave
• Kick angles
• Wheelbase
• Deck geometry
• Adhesive
• Pressing pressure
• Moisture content
• Manufacturing accuracy

The relationship between thickness and stiffness is also not simply "thicker veneer = better pop."

In laminated structures, the position and orientation of each layer can be extremely important. Engineering studies of plywood show that bending stiffness depends heavily on how material is distributed through the structure and how the grain directions are arranged.

So a carefully constructed thin-veneer deck can easily outperform a poorly constructed thick-veneer deck.

Veneer Thickness vs Ply Count

This is where things become particularly interesting.

Imagine two hypothetical decks:

Deck A

5 × 0.5 mm veneers

Approximately 2.5 mm of wood before accounting for glue and compression.

Deck B

5 × 0.7 mm veneers

Approximately 3.5 mm of wood before glue and compression.

Both are technically 5-ply decks.

But they can feel very different.

Deck B has substantially more wood in each layer and will generally produce a more substantial construction.

Now consider:

Deck C

7 × 0.5 mm veneers

Approximately 3.5 mm of wood.

The interesting part is that Deck C could have a similar amount of wood to Deck B while using seven thinner layers instead of five thicker ones.

That gives the builder a completely different way of tuning the laminate.

This is why ply count alone doesn't tell you how a fingerboard will perform.

Thin Veneers + More Plies

This is an increasingly interesting approach for custom fingerboard construction.

Using thin veneers allows builders to create 6-, 7-, 9-, 11- or even 12-ply constructions while keeping the deck within a sensible overall thickness.

The advantages can include:

• Highly tunable stiffness
• Complex ply graphics
• Greater cross-lamination
• Fine control over overall thickness
• Interesting combinations of wood species
• Distinctive sidewall aesthetics

The disadvantages are primarily manufacturing complexity and weight management.

More layers also mean more opportunities for imperfections between layers.

Thick Veneers + Fewer Plies

The opposite philosophy is to use thicker veneers and keep the ply count low.

This can create a simpler and more substantial laminate.

For example, a carefully constructed 3- or 5-ply deck using relatively thick veneers can feel very different from a lightweight 7- or 9-ply deck using thin veneers.

The advantage is simplicity.

The disadvantage is reduced flexibility when trying to tune the construction.

The Outer Veneers Matter More Than You Might Think

Not every veneer contributes equally to the finished deck.

The outer layers are particularly important because material positioned farther away from the neutral axis contributes strongly to bending stiffness. Engineering research on plywood demonstrates that putting stronger or stiffer material toward the outer faces can substantially increase bending performance.

This has an interesting implication for fingerboards.

A builder doesn't necessarily need every veneer to be identical.

You could potentially use:

Thin decorative inner plies + stronger outer plies

or

Different woods for the face and core

to create a particular combination of appearance, weight and stiffness.

This is one reason high-quality deck construction is considerably more complicated than simply stacking pieces of wood together.

What About 0.3 mm vs 0.6 mm vs 0.9 mm?

A simplified way of looking at it:

Veneer thickness	General character	Advantages	Disadvantages
0.3–0.4 mm	Lightweight / highly tunable	Many layers, complex constructions, excellent conformity	Fragile, difficult to handle
0.5–0.6 mm	Balanced	Excellent all-rounder, easy to press	Less extreme characteristics
0.7–0.8 mm	Substantial	Strong, easier handling, solid feel	Heavier, fewer layers needed
0.9–1.0+ mm	Heavy / rigid construction	Very substantial, simple laminate	Harder to form, less tunable

These aren't absolute rules. Wood species and manufacturing technique can completely change the outcome.

So Which Veneer Thickness Is Best?

There isn't one correct answer.

For a general-purpose high-quality fingerboard, approximately 0.5–0.6 mm maple veneer is a very sensible starting point.

It provides an excellent compromise between:

Strength + Flex + Weight + Pressability + Consistency

But specialist builders can achieve excellent results outside this range.

If you're building an ultra-light technical deck, thinner veneers may be attractive.

If you're building an extremely stiff, substantial deck, thicker veneers may make more sense.

And if you're building something unusual, perhaps a 7-, 9- or 12-ply deck, thin veneers give you much greater freedom to experiment.

The Real Secret: Consistency

Ultimately, the thickness printed on the veneer isn't the only thing that matters.

A supposedly perfect 0.6 mm veneer that varies considerably across its surface can produce a worse deck than a consistently manufactured 0.5 mm veneer.

The best builders pay attention to:

• Veneer thickness
• Wood quality
• Grain direction
• Moisture
• Adhesive quantity
• Pressing pressure
• Press time
• Concave
• Kick geometry
• Final sanding

All of these variables interact.

That is why two builders can use apparently identical maple veneer and produce boards that feel completely different.

Final Thoughts

Veneer thickness is one of the hidden variables that separates basic fingerboard construction from genuinely refined deck building.

Ply count tells you how many layers you have. Veneer thickness tells you how those layers are being used.

A five-ply deck isn't automatically better than a seven-ply deck, and a 0.6 mm veneer isn't automatically better than a 0.4 mm veneer.

The goal is to match the veneer thickness, ply count, wood species and construction method to the characteristics you actually want.

And that is where fingerboard building becomes interesting.

There is no single "perfect" recipe.

There are only different ways of balancing weight, stiffness, flex, pop, durability and feel, and the veneer is one of the most important ingredients in that equation.
